The Julong JL 5010 is a 1.5
Pocket note sorter capable
of fitness sorting, authentication
and value counting.
This is one of the smallest desk
top note sorters available.
More details
More details
JL 303 is a fitness machine
designed specifically to perform
the demanding task of seeking
fit notes and separate them in
a precise and accurate manner.
It is compliant with the ECB
Banknote Recycling Framework.

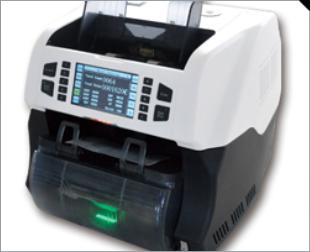

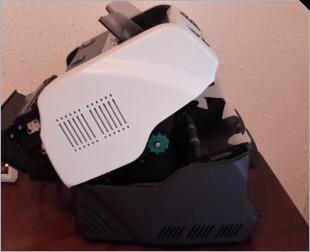

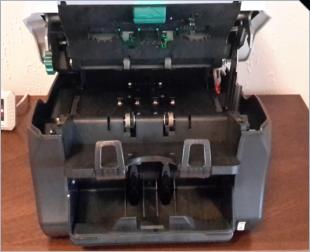

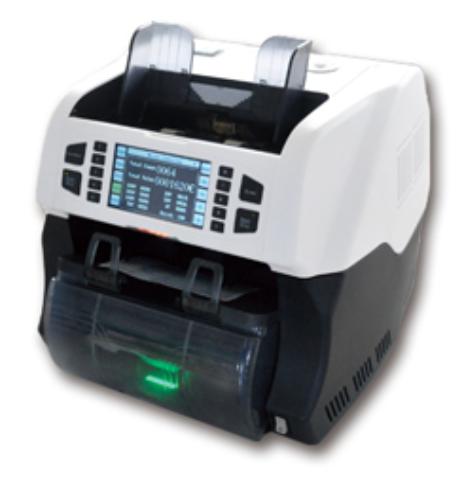

Julong JL 5010 - 1.5 pocket Note Sorter
The Julong JL 5010 is a 1.5 Pocket note sorter, capable of fitness sorting, authentication and
value counting.
This is one of the smallest desk top note sorters available.
Features:

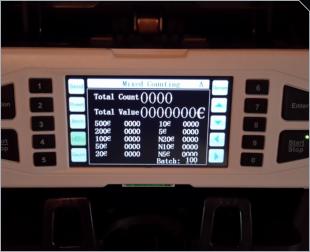

- Mixed denomination value counting
- Mixed denomination sorting
- Mixed or single denomination fitness sorting
- Face and orientation
- ECB specified reporting of notes processed
- Receipt printer (optional)
- Customer display (optional)
Specifications:
- hopper capacity
600 pieces
- stacker capacity
200 pieces and 100 pieces
- Number of stackers:
2 stackers
- Sorting speed:
600-800 pieces sorted / min
- Mixed counting speed:
1000-1200 pieces counted/m
- Start mode:
auto start mode
- Power supply range:
220VAC, 50 HZ
- Power consumption:
150W power consumption
- External dimensions:
312 mm (W), 318 mm (D),
290 mm (H)
Small footprint
- Weight: 15 kg

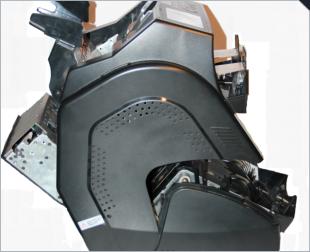

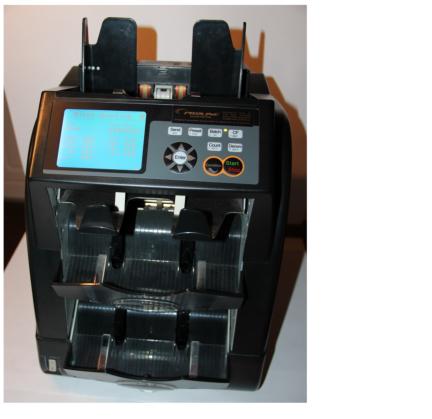

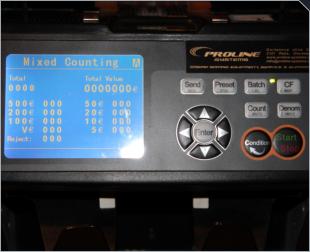

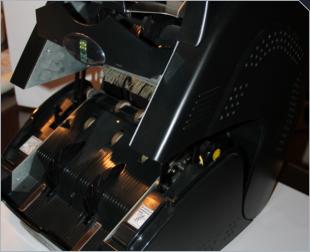

Julong JL 303 - 3 Pocket Note Sorter
The JL303 is a fitness sorter designed to separate ATM or ECB fit and unfit notes. It can be used
for mixed denomination value counting, so the machine is an aid for busy front desk cashiers
balancing customer deposits or in the back office, performing fitness sorting or deposit
verification of larger commercial deposits.
Features:
- Mixed denomination value counting
- Mixed denomination sorting
- Mixed or single denomination fitness sorting
- Condition sorter
- ECB specified reporting of notes processed
- Receipt printer (optional)
- Customer display (optional)
Specifications:
- hopper capacity
500 notes
- stacker capacity
200 notes max, default 100 notes
- Number of stackers:
2 stackers
- Speed:
1000 notes counted/m
- Start mode:
auto start mode
- Power supply range:
90-260VAC, 50-60 HZ
- Power consumption:
150W power consumption
- External dimensions:
330 mm (W), 400 mm (D),
405 mm (H)
- Weight: 28 kg
