Banknote Counting

Julong JL 303 - 3 Pocket Note Sorter The JL303 is a fitness sorter designed to separate ATM or ECB fit and unfit notes. It can be used for mixed denomination value counting, so the machine is an aid for busy front desk cashiers balancing customer deposits or in the back office, performing fitness sorting or deposit verification of larger commercial deposits. Features: - Mixed denomination value counting - Mixed denomination sorting - Mixed or single denomination fitness sorting - Condition sorter - ECB specified reporting of notes processed - Receipt printer (optional) - Customer display (optional) Specifications: - hopper capacity 500 notes - stacker capacity 200 notes max, default 100 notes - Number of stackers: 2 stackers - Speed: 1000 notes counted/m - Start mode: auto start mode - Power supply range: 90-260VAC, 50-60 HZ - Power consumption: 150W power consumption - External dimensions: 330 mm (W), 400 mm (D), 405 mm (H) - Weight: 28 kg

JL206 Advanced Counter/Fitness Sorter Machine The JL 206 series may be little in size, fitting perfectly in the space of a normal banknote counter, but this little size does not affect its performance. The JL 206 series does not trade performance, features and functionality to size. Introduction: Accurate detection module: The combination of matched CISs with dedicated constant temperature, microprocessor controlled light sources of various wavelengths ensures a stable performance and accurate, repeatable detection of the banknote’s density variations. With full-width magnetic detectors that not only detect the presence or the level of magnetic features of a note, but analyze and decode any encoded magnetic information that exists on a note. A proven full-width displacement thickness detector verifies that notes with tape are securely detected and out-sorted. Performance and functionality: JL 206 series is one of the very few sorters of its size that implements a MIS to help the management by offering reports for batches and jobs. The JL 206 series is a chameleon of the Banking industry, a multirole machine that can work at the teller’s desk as a non-stop counter, a denomination sorter, a fitness sorter to follow the framework’s requirements or can work at the end-of-day procedures as a fast reconciliatory unit or batch fitness sorter dealing with the notes returned to head-quarters. High-tech features: 24 hours monitoring Deposit function Serial number reading and decoding CMS compliant Fully controllable through the network Specification: Function:Count/Mix-count/Denomination/Face&Orientation/Fitness Capacity:500 pcs(Hopper) 200pcs(Stacker) 100pcs(Reject) Detection: Image, THD, IR, UV, MG Speed: Counting:1400pcs/min Fitness sorting:1100pcs/min Serial number reading:800pcs/min Display:4.3"TFI color display Interface:USB,LAN, RS232 connectable Power supply: AC198-250V, 50-60Hz Dimensions:320mmX350mmX340mm(WxDxH) Weight: 14kg

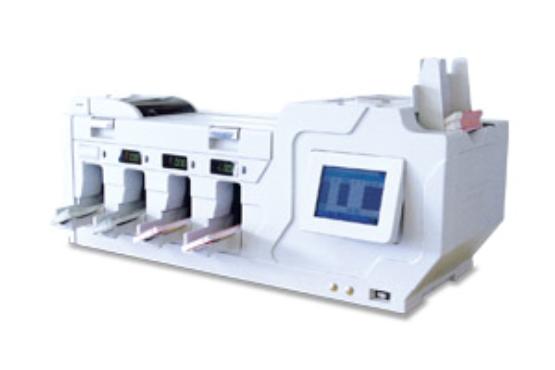

Julong JL 305 - Advanced currency sorter The unique features of Julong's advanced currency sorter JL305 make it the most efficient sorter in the market. The "virtual pockets" principle simply doubles the efficiency and increases your production. Features: - 4 Output Pockets (performs as 8 pocket) - 800 Notes/min sort, 1000 Notes/min count - Straight transmission path (fewer jams) - Continuous feeding - User friendly touch Screen interface - Mixed denomination value counting & sorting - Receipt printer (optional) - Buikt in microprocessor working under WindowsTM operating system Specifications: - hopper capacity 500 notes - stacker capacity 250 notes - Sorting speed: 800 pieces sorted / min - Mixed counting speed: 1000 pieces counted/m - Start mode: auto start mode - Power supply range: 220VAC, 50 HZ - Power consumption: 150W power consumption - External dimensions: 1034 mm (W), 380 mm (D), 404 mm (H) - Weight: 89 kg
